What Are the Advantages of UL Nylon Sheathed THHN Cables?

In modern electrical systems, every power engineering project strives for safety, stability, and efficiency. Whether it's residential buildings, commercial complexes, or the installation of large industrial equipment, the selection of suitable cables is crucial. Among the many cable types, UL-certified nylon-sheathed THHN cables (thhn wires) are particularly popular in the Americas (North America and Latin America) and the Philippines.

Geritel Wire, as a professional wire and cable manufacturer, has focused on the research and development of high-performance conductors and insulation materials for many years. Its THHN Cables (thhn cables) not only meet UL standards but also exhibit superior heat resistance, moisture resistance, and chemical resistance, providing durable and safe power supply solutions for electrical engineering projects.

1. What is THHN cable?

1.1 Definition and Meaning of THHN

THHN is an abbreviation for Thermoplastic High Heat-resistant Nylon-coated Wire. It belongs to the most common and universal type of single-core conductor in building wiring and industrial electrical systems. Each letter in the abbreviation "THHN" represents the cable's structure and performance characteristics:

T (Thermoplastic): Indicates that the insulation layer of the wire is made of thermoplastic material, usually PVC (polyvinyl chloride). This material has good flexibility and electrical insulation at high temperatures, and is easy to manufacture and recycle.

H (High Heat-resistant): Indicates that the wire has high heat resistance and can withstand operating temperatures up to 90°C (194°F) in dry environments for extended periods without degradation.

H (Second H): Further enhances its high-temperature resistance rating, meeting the heat resistance requirements of the US UL 83 standard.

N (Nylon-coated): This indicates that the outer layer is covered with a nylon (polyamide) sheath, which significantly improves mechanical strength, abrasion resistance, moisture resistance, and chemical corrosion resistance.

THHN cable is a high-performance building cable that combines thermoplastic insulation, high-temperature performance, and a nylon protective layer.

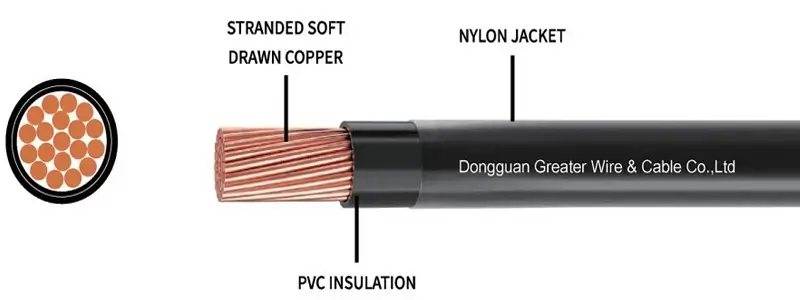

1.2 Structural Composition of THHN Cables

A complete THHN cable generally consists of three main layers, each serving a different function:

• Conductor

Material: Primarily high-purity oxygen-free copper or aluminum conductor.

Structure: Can be solid or stranded.

• Insulation Layer

Material: Uses PVC (Polyvinyl Chloride) thermoplastic insulation, possessing excellent dielectric strength and flame retardant properties.

Characteristics: Prevents current leakage and short circuits; the thickness and formulation of the PVC layer are optimized for long-term stability at a 600V operating voltage.

Temperature Rating: Withstands 90°C in dry environments, typically rated for 75°C in humid environments (or up to 90°C in THHN/THWN-2 versions).

• Nylon Jacket/Sheath

Material: The outer layer is covered with a thin but tough polyamide film.

Functions: Enhances resistance to mechanical shock and abrasion; provides an additional moisture barrier; resists chemical corrosion, especially grease, gasoline, acids, alkalis, and solvents; reduces the coefficient of friction when running through conduit, making wire installation smoother and saving labor time.

2. Key Advantages of UL Nylon Sheathed THHN Cables

2.1. Superior Heat and Moisture Resistance

THHN Wire utilizes a high-quality PVC thermoplastic insulation layer, allowing for continuous operation in dry environments up to 90°C without compromising insulation performance. Compared to ordinary building cables, it maintains stable conductivity in high-temperature areas and is less prone to softening, aging, or deformation. Simultaneously, its outer nylon jacket effectively prevents moisture penetration into the insulation layer, extending the wire's lifespan. Even in slightly humid environments or when encountering condensation during conduit installation, it maintains excellent insulation strength.

2.2 Excellent Mechanical Strength and Abrasion Resistance

THHN Cable's nylon sheath not only enhances moisture resistance but also provides the cable with higher mechanical toughness and abrasion resistance. In actual installations, cables often need to pass through metal conduits or cable trays; the nylon outer layer significantly reduces the coefficient of friction with the conduit wall, preventing surface scratches and insulation damage. The high-density nylon material has undergone numerous abrasion resistance tests, demonstrating a tensile strength more than 30% higher than traditional PVC wire, allowing it to withstand frequent bending, pulling, and mechanical vibration. Whether in power distribution conduits in industrial plants or cable shafts in high-rise buildings, stranded THHN wire remains stable and intact.

2.3. Chemical and Oil Resistance

In industrial environments, THHN cables are frequently exposed to grease, gasoline, lubricants, and chemical solvents. Ordinary PVC wires are prone to aging due to oil seepage or chemical corrosion. THHN Wire, however, uses a specially formulated nylon sheath, providing excellent resistance to oil, acids, alkalis, and chemical corrosion. Whether in automotive manufacturing plants, petrochemical equipment, machinery control panels, or warehousing and logistics systems, THHN Cables operate stably, preventing insulation cracking or short circuits caused by external chemical factors.

2.4. Easy Installation and Cost Efficiency

THHN stranded wire, with its flexible conductor and smooth nylon sheath, makes cable installation in conduits easier and smoother, reducing frictional resistance during manual pulling. Compared to traditional wiring materials, THHN Cable achieves faster and safer construction efficiency, significantly shortening the construction period. The nylon sheath also reduces the accumulation of dust and oil on the conductor surface, making later maintenance and replacement easier. In long-term use, its wear-resistant and corrosion-resistant properties reduce the frequency of maintenance and replacement, thereby saving labor and operating costs and improving overall cost-effectiveness.

3. The Importance of UL Certification for THHN Wire

Whether for building wiring, power distribution installation, or industrial equipment power supply, UL-certified cables ensure long-term stability and compliance. Geritel Wire's THHN wire has passed UL's stringent certification.

UL certification is one of the globally recognized electrical safety standards systems, widely used in the United States, Canada, and other countries and regions that follow the NEC (National Electrical Code). UL-certified THHN electrical wires have insulation materials that have undergone heat resistance, flame retardancy, and dielectric strength tests, maintaining structural integrity in long-term high-temperature environments and preventing insulation aging and breakdown. UL standards require cables to pass the vertical burning test (VW-1), demonstrating self-extinguishing and non-flame propagation in a fire environment. UL-certified cables exhibit stable conductivity and durable insulation under long-term energization, mechanical stress, and thermal cycling conditions.

4. Common Applications of THHN Cable

THHN Cable, with its excellent electrical performance, heat resistance, and mechanical strength, is widely used in various industrial, commercial, and residential wiring systems. As a high-quality cable certified by UL and compliant with NEC standards, it covers almost all key aspects of modern power distribution and control.

4.1. Industrial Power Distribution Systems

In industrial environments, THHN Wire plays a central role in power transmission and control signal transmission. It is widely used in control cabinets, distribution panels, internal wiring of mechanical equipment, and automated production lines.

THHN stranded wire employs a multi-strand flexible copper conductor structure, maintaining reliable conductivity under high mechanical vibration, frequent bending, or confined spaces. Its heat resistance, abrasion resistance, and oil resistance make it suitable for factories, manufacturing workshops, and heavy machinery systems.

4.2. Commercial Building Wiring

In large commercial buildings, such as shopping malls, office buildings, hotels, and airports, THHN Electrical Wire (THHN electrical wire) is mainly used for lighting, power sockets, air conditioning systems, and emergency power branch lines.

4.3. Residential Wiring Applications

In the residential sector, THHN Wire is commonly used for wiring from distribution boxes to outlets, lighting circuits, and power lines for household appliances. Its highly conductive copper core and high-temperature resistant insulation ensure the safety and stability of home electrical systems. Furthermore, the smooth nylon outer sheath effectively reduces friction during conduit installation, simplifying the process.

4.4. Energy and Infrastructure Projects

In the energy and public infrastructure sector, THHN Cable also demonstrates strong adaptability. Its heat resistance, moisture resistance, and chemical corrosion resistance make it the preferred conductor type for solar power systems, rail transit power supply, subway and tunnel lighting, and airport electrical control systems.

Why Choose Geritel Wire THHN Cables

Geritel Wire has become a trusted partner for customers worldwide due to its stringent requirements in materials, processes, and quality control. THHN cables are UL certified, offering superior performance, durability, and customization flexibility.

• Strict Quality Control

Geritel Wire adheres to the production philosophy of "quality is life." Every meter of THHN electrical wire undergoes conductor resistance testing, insulation thickness measurement, and high-voltage withstand testing. All cables undergo electrical safety verification by internal laboratories and third-party organizations, including tests for withstand voltage, flame retardancy and heat resistance, and mechanical tensile and bending.

This multi-layered quality control system ensures stable operation in complex environments, significantly reducing post-project maintenance risks.

• High-Purity Copper Conductors

The conductor is the core of cable performance. Geritel Wire uses 99.97% oxygen-free copper, which has low resistance and high conductivity, significantly reducing energy loss. Compared to ordinary copper wire, Geritel Wire's high-purity copper conductors exhibit lower temperature rise and longer lifespan under the same current load. Furthermore, the company utilizes precision automated equipment in the conductor drawing and stranding processes, resulting in a dense core structure and smooth surface, thereby enhancing overall electrical stability.

• UL Certification and Global Compatibility

THHN cables are fully UL certified and comply with NEC requirements. This means that this series of cables can be widely used in countries and regions that adopt UL/NEC standards, such as North America, Latin America, and the Philippines, fully meeting local engineering regulations and safety standards.

• Flexible Customization Service

Geritel Wire understands that cable requirements vary from project to project, and we offer comprehensive customization solutions. For example, specification customization: from AWG 14 to 1000 MCM, meeting various current capacity requirements; color selection: supporting multi-color outer sheaths for easy wiring identification and management; packaging: available in rolls, reels, or industrial cable reels to suit OEM and bulk project needs; special environment design: customizable high-temperature resistant, oil-resistant, UV-resistant, or low-smoke halogen-free versions, etc.
